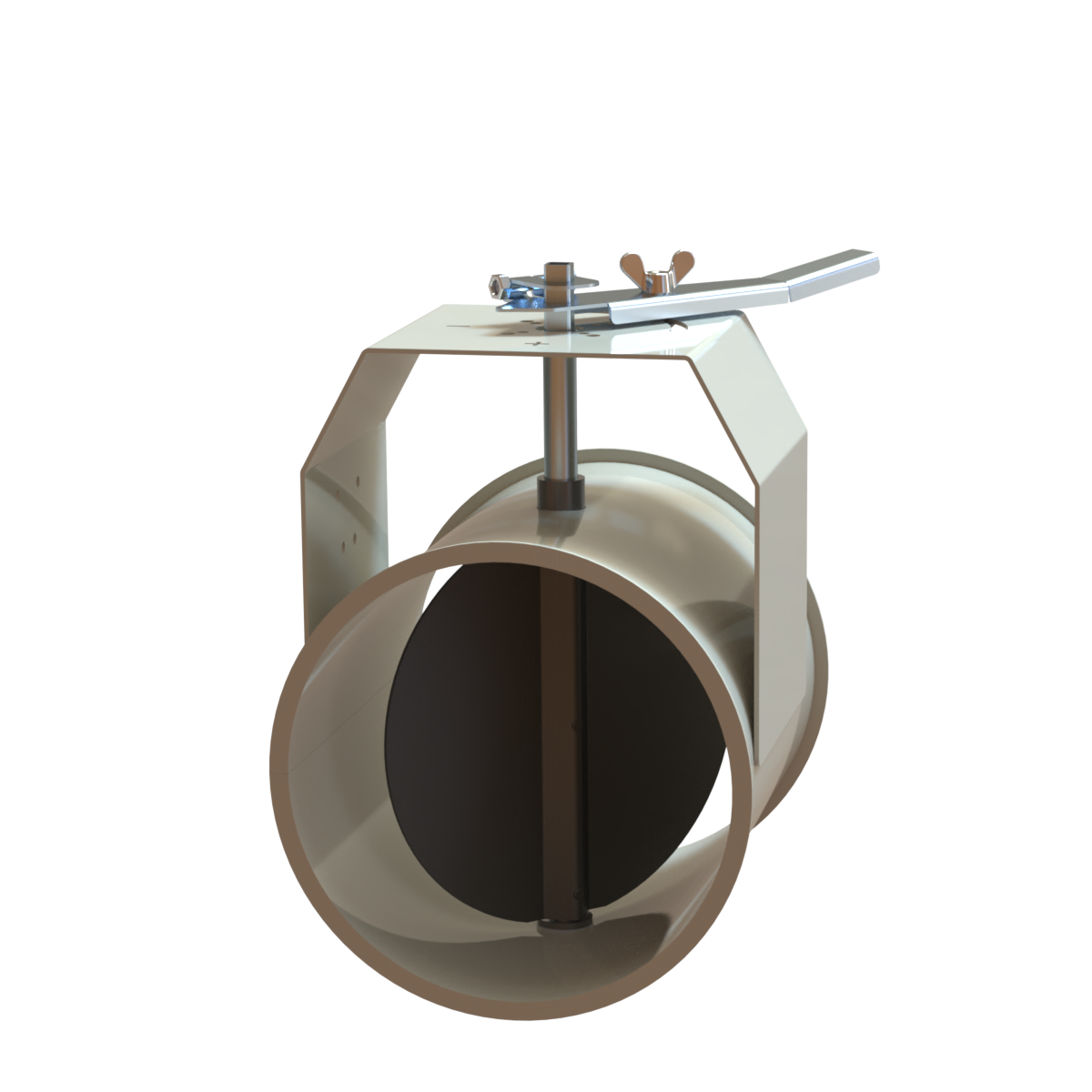

BSTB - Throttle valve manual

The throttle valves are used to control airflow in ducting with help of handle. Valves have a regulating handle with star-nut to secure the blade in a fixed position. Made from 2mm black steel, rolled, full welded with 6 mm edges for lock rings. Flanges for connection can be used as an option on request.
As option:
- Different RAL
- With gasket
- With electric motor
- With pneumatic motor

Art Nr	Description	Ø (mm)	L (mm)
BSTB-080	Throttle valve black 2 mm	80	125
BSTB-100	Throttle valve black 2 mm	100	125
BSTB-120	Throttle valve black 2 mm	120	135
BSTB-125	Throttle valve black 2 mm	125	135
BSTB-140	Throttle valve black 2 mm	140	170
BSTB-150	Throttle valve black 2 mm	150	170
BSTB-160	Throttle valve black 2 mm	160	170
BSTB-180	Throttle valve black 2 mm	180	210
BSTB-200	Throttle valve black 2 mm	200	210
BSTB-225	Throttle valve black 2 mm	225	240
BSTB-250	Throttle valve black 2 mm	250	265
BSTB-300	Throttle valve black 2 mm	300	315
BSTB-315	Throttle valve black 2 mm	315	330
BSTB-350	Throttle valve black 2 mm	350	365
BSTB-400	Throttle valve black 2 mm	400	415
BSTB-450	Throttle valve galvanised	450	465
BSTB-500	Throttle valve black 2 mm	500	515
